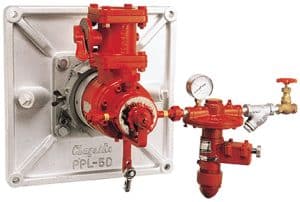

PLB™ Proportioning Burner
🔹 Summary
The PLB™ Proportioning Burner is a low-pressure air atomizing oil burner capable of full-range firing without changing the excess air ratio. Single-lever operation ensures precise combustion control without complex equipment. Its high-intensity combustion allows for compact combustion chamber design.
🔹 Key Features
・ Low-pressure air atomizing oil burner
・ Full-range firing without changing excess air ratio
・ Single-lever operation for precise combustion control
・ Enables compact combustion chamber design
・ Air pressure: 6 kPa
🔹 Applications
・ Industrial furnaces needing flexible, precise oil combustion
・ Compact combustion chamber design requirements
Hot-PLB™ Proportioning Burner
🔹 Summary
The Hot-PLB™ Proportioning Burner uses preheated air up to 500°C to improve fuel efficiency. The burner automatically adjusts the excess air ratio according to firing rate and air temperature, and it can burn kerosene, light oil, or heavy oil.
🔹 Key Features
・ Uses preheated air up to 500°C
・ Automatic adjustment of excess air ratio
・ Fuel: kerosene, light oil, heavy oil
・ Air pressure: 500 kPa
・ Air temperature: 350°C
🔹 Applications
・ High-temperature furnaces requiring fuel savings
・ Processes needing precise excess air control

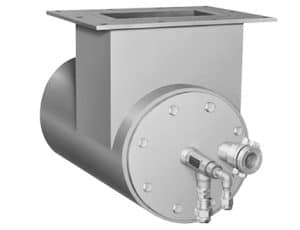

FR Register Burner
🔹 Summary
The FR Register Burner is an air register designed to work with sprayers such as HB, MB, or SEA models. It can utilize preheated air up to 450°C.
🔹 Key Features
・ Compatible with external sprayers (HB, MB, SEA)
・ Preheated air up to 450°C
・ Fuel: kerosene, light oil, heavy oil
・ Firing rate: 3–1000 L/h
🔹 Applications
・ Industrial burners requiring controlled air distribution
・ Combined use with high-performance sprayers

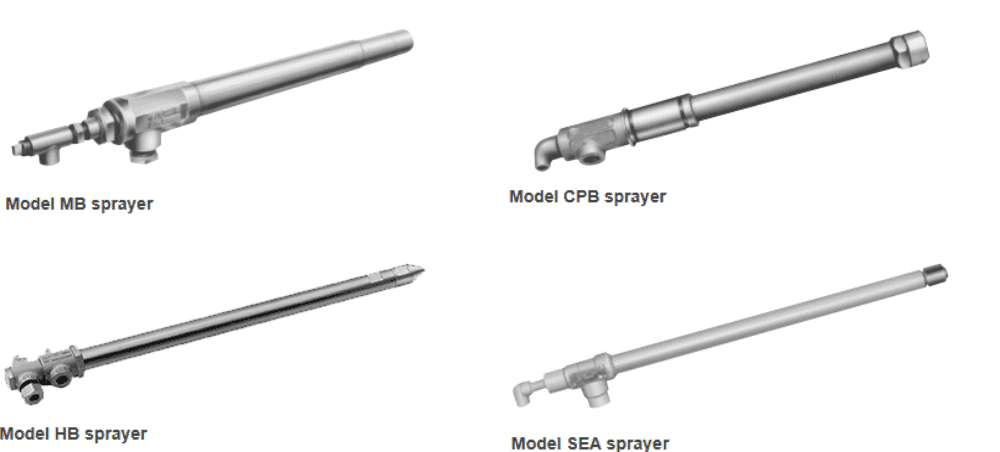

Sprayers
| Model | Type | Key Features / Notes | Applications |
|---|---|---|---|
| HB Sprayer | External mixing | High-pressure fluid atomizing with high-pressure air or steam | High-intensity oil combustion |
| SEA Sprayer | External mixing | Steam consumption reduced to 1/3–1/6 of conventional sprayers | Fuel-efficient combustion |
| MB Sprayer | Fluid jet type | Mixes oil with high-pressure air or steam under same internal pressure | Precise atomization for medium-scale furnaces |
| CPB Sprayer | High-pressure | Spraying pressure up to 2000 kPa, return and non-return types | Large combustion capacity applications |
